Plum Shaft Coupling
Created with Pixso. GFC20*25 Gummimaulflexible Wellenkopplung für die Industrie

GFC20*25 Gummimaulflexible Wellenkopplung für die Industrie

Markenname: Tianniu
Modellnummer: GFC
Mindestbestellmenge: 1 Stk
Price: negotiable
Lieferzeit: 3-5 Werktage
Zahlungsbedingungen: T/T, Western Union, , L/C, D/A, D/P.
Detailinformationen
Herkunftsort:
China
Zertifizierung:
ISO 9001
Modell:
GFC-KIEFERKUPPLUNG
Garantie:
12 Monate
Bohrungsgröße:
3-55mm
Länge:
14–95 mm
Touque:
5-250
Verpackung Informationen:
Kartone durch Seeverschiffen durch Flugzeug
Versorgungsmaterial-Fähigkeit:
10000 pro Monat
Hervorheben:

Kautschuk-Machshaft-Kopplung für die Industrie

,

Flexible Wellenkopplung GFC20*25

,

Pflaumenwellenkopplung mit Gummi-Kiefer

Produktbeschreibung

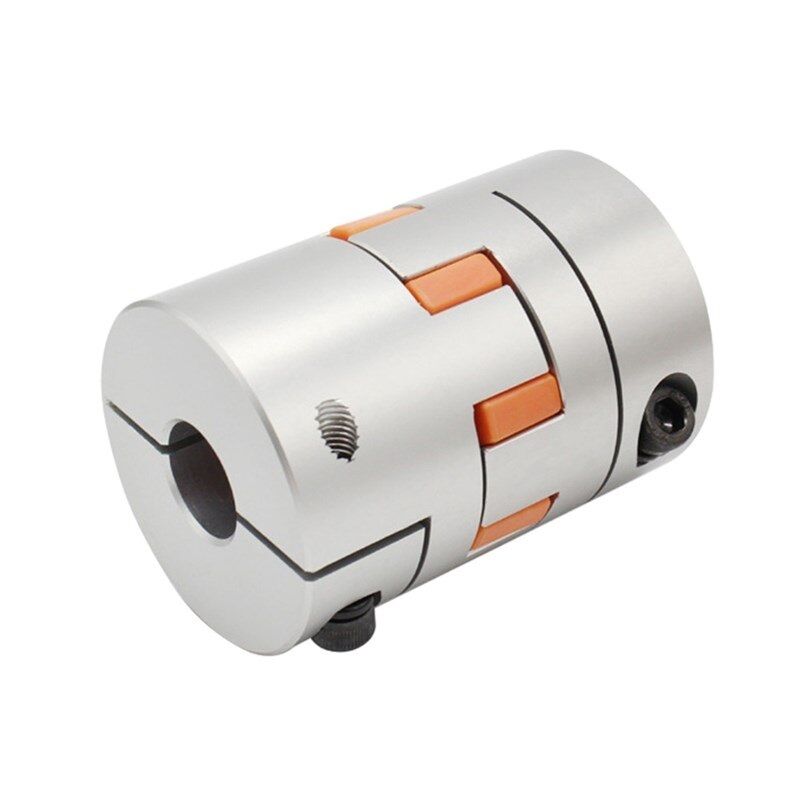

GFC-Wellenkopplung Flexible Kopplung

GFC20*25 Gummimaulflexible Wellenkopplung für die Industrie



Merkmale der Produkte



>Hohe Drehmomentsteifigkeit, kann die Drehung der Welle präzise steuern, kann eine hochpräzise Steuerung durchführen
>Entworfen für Servomotor und Schrittmotor
>Keine Lücke zwischen Welle und Hülle, allgemein für positive und negative Rotation
>Niedrige Trägheit, geeignet für den Hochgeschwindigkeitsbetrieb
>Das Membran ist aus Federstahl mit ausgezeichneter Ermüdungsbeständigkeit



Produkteparameter



GFC20*25 Gummimaulflexible Wellenkopplung für die Industrie
GFC20*25 Gummimaulflexible Wellenkopplung für die Industrie
Modellparameter
Durchmesser der gemeinsamen Bohrung d1, d2
ΦD
L
LF
LP
F
M
Drehmoment der Schraubschraube
(N.M.)
GFC-14X22
3,4,5,6,6.35
14
22
14.3
6.6
5.0
M2.5
1.0
GFC-20x25
3,4,5,6,6.35,7,8,9,9.525,10
20
25
16.7
8.6
5.9
M3
1.5
GFC-20X30
3,4,5,6,6.35,7,8,9,9.525,10
20
30
19.25
8.6
5.9
M3
1.5
GFC-25X30
4,5,6,6.35,7,8,9,9.525,10,11,12
25
30
20.82
11.6
8.5
M4
2.5
GFC-25X34
4,5,6,6.35,7,8,9,9.525,10,11,12
25
34
22.82
11.6
8.5
M4
2.5
GFC-30x35
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
35
23
11.5
10
M4
2.5
GFC-30X40
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
40
25
11.5
10
M4
2.5
GFC-40X50
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
50
32.1
14.5
14
M5
7
GFC-40X55
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
55
34.5
14.5
14
M5
7
GFC-40X66
6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24
40
66
40
14.5
14
M5
7
GFC-55X49
10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
49
32
16.1
13.5
M6
12
GFC-55X78
8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
78
46.4
16.1
19
M6
12
GFC-65X80
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
80
48.5
17.3
14
M8
20
GFC-65X90
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
90
53.5
17.3
22.5
M8
20
GFC-80X114
19,20,22,24,25,28,30,32,35,38,40,42,45
80
114
68
22.5
16
M8
20
GFC-95X126
19,20,22,24,25,28,30,32,35,38,40,42,45,50,55
95
126
74.5
24
18
M10
30
Modellparameter
Nenndrehmoment
(N.M.) *
zulässige Exzentrizität
(mm) *
zulässiger Abbiegungswinkel
(°) *
zulässige Achsabweichung
(mm) *
Höchstgeschwindigkeit
Umdrehungen pro Minute
statische Torsionssteifheit
(N.M/rad)
Moment der Trägheit
(Kg.M2)
Gewicht
(g)
GFC-14X22
5.0
0.1
1
±02
10000
50
1.0x10-6
10
GFC-20X25
5.0
0.1
1
±02
10000
50
1.0x10-6
15
GFC-20X30
5.0
0.1
1
^02
10000
53
1.1x10-6
19
GFC-25X30
10
0.1
1

10000
90
5.2X10-6
33
GFC-25X34
10
0.1
1
£) 2
10000
90
5.2x10-6
42
GFC-30X35
12.5
0.1
1
±02
10000
123
6.2x10-6
50
GFC-30x40
12.5
0.1
1
102
10000
123
6.2x10-6
60
GFC-40X50
17
0.1
1

8000
1100
3.8x10-5
115
GFC-40X55
17
0.1
1
±02
8000
1100
3.8x10-5
127
GFC-40X66
17
0.1
1

7000
1140
3.9x10-5
154
GFC-55X49
45
0.1
1
±02
6500
2350
1.6x10-3
241
GFC-55X78
45
0.1
1
102
6000
2500
1.6x10-3
341
GFC-65X80
108
0.1
1
±02
5500
4500
3.8x10-3
433
GFC-65X90
108
0.1
1
±02
5500
4800
3.8x10-3
583
GFC-80X114
145
0.1
1
£) 2
4500
5000
1.8x10-3
1650
GFC-95X126
250
0.1
1
±02
4000
5000
2.0x10-3
1000
